连续式干法珠磨机
Continuous Operation Type Dry Bead Mill
DRYSTAR SDA1
The Only Desktop Type Continuous Dry Bead Mill in the Industry
连续操作型干法珠磨机
DRYSTAR SDA1
行业内唯一的台式连续式干法珠磨机
The DRYSTAR SDA1 achieves submicron-size particles by dry grinding without classifiers.
This machine has a 100 times better grinding ability compared to ball mills.
A trial can be started from 0.5L as a minimize volume.
User friendly design.
DRYSTAR SDA1通过无分级机的干法珠磨实现亚微米级颗粒。
这台机器的研磨能力是球磨机的100倍。
试验可以从0.5L开始，作为最小体积。
用户友好的设计。

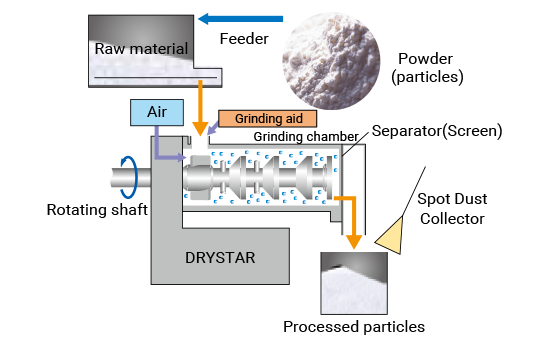

Structual drawing/Feature结构图纸/功能
Achieving submicron-size particles by dry grinding
Capable of testing 0.5 L as a minimum sample volume
Particle diameter of 10 μm at maximum without using classifiers
100 times better grinding ability compared to ball mills
通过干磨获得亚微米大小的颗粒
能够测试0.5 L作为最小样品体积
在不使用分类器的情况下，最大粒径为10 μm
研磨能力是球磨机的100倍

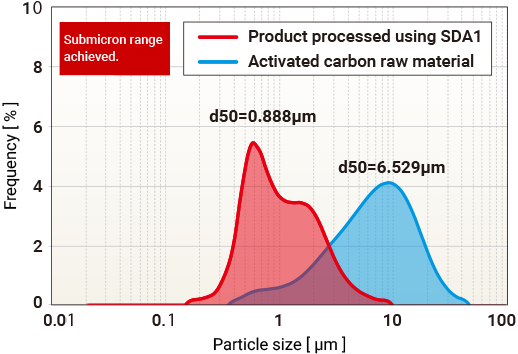

Process Examples
处理例子

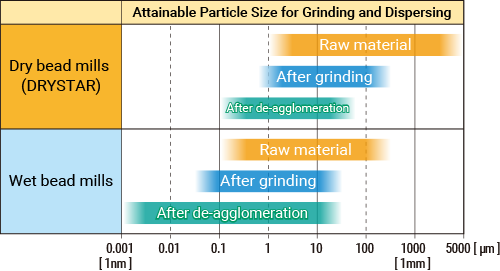

Dry bead mills干法珠磨 | Wet bead mills湿法珠磨 | |
Bead diameter珠子直径 | Φ1.5 – 8mm | Φ0.03 – 2mm |
Shaft seal轴封 | Easy容易 | Precision精密 |
Material wear材料磨损 | Low低 | High高 |
Re-agglomeration重团聚 | More likely更有可能 | Less likely不太可能 |
Particle compounds颗粒化合物 | Good好 | Possible可能 |
Mechanochemical effect机械化学效应 | Large很大 | Extremely small极小 |
Applications应用
Mohs hardness摩氏硬度 | Materials材料 |
7 – 9 | Quartz, silica, soft ferrites, hard ferrites, carrier ferrites, alumina, silicon nitride, iron oxide, tungsten oxide, sodium silicate 石英、二氧化硅、软铁氧体、硬铁氧体、载体铁氧体、氧化铝、氮化硅、氧化铁、氧化钨、硅酸钠 |
4 – 6 | Glass, carbon, black silica, blast furnace ash, fly ash, burned ash, organogermanium玻璃、碳、黑硅、高炉灰、飞灰、燃烧灰、有机锗 |
Less than小于 4 | Gypsum, magnesium hydroxide, aluminum hydroxide, barium titanate, PZT, powdered green tea, rice flour石膏、氢氧化镁、氢氧化铝、钛酸钡、PZT、绿茶粉、米粉 |
Specifications规格
Model型号 | SDA1 – SDA500 |
Motor电机 | 3.5kW – 200kW |
Grinding chamber volume磨腔容积 | 1.0L – 500L |
Bead diameter珠子直径 | φ1.5 – 8mm |
